RSG30/RSG30LP Gas/Liquid Propane Range Features:
-

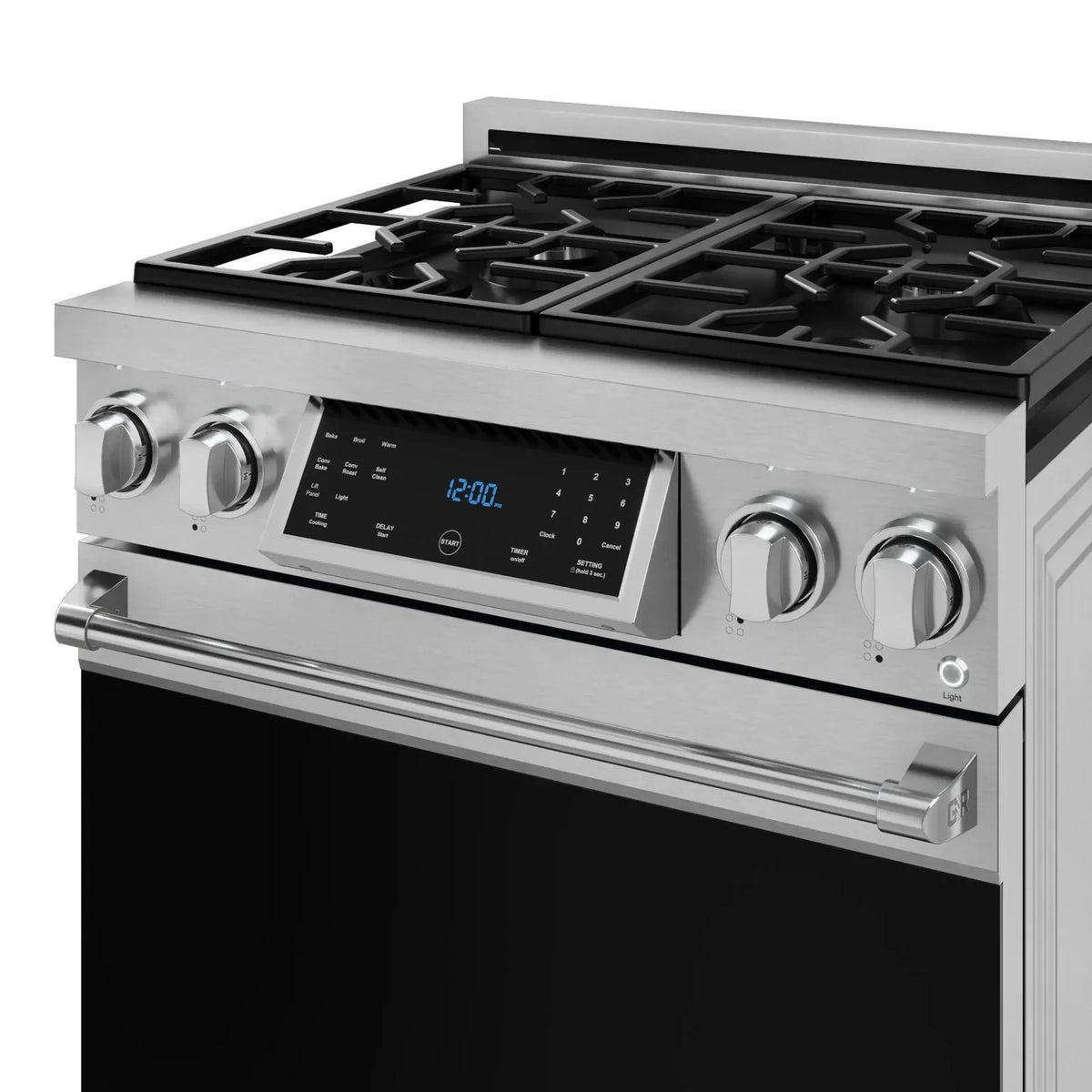

Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.
-
Continuous Cooking Grate - The continuous grate design allows easy movement of pots and pans across the cooktop.
-
High-Performance Dual Burners - Featuring a maximum output of 15,000 BTU for powerful cooking and a minimum of 650 BTU for precise, gentle simmering.
-
White Projector Light on Panel - The panel is illuminated by a white
projector light, ensuring easy visibility and a modern look.
-
Commercial Convection Fan - For even heat distribution within the oven.
-

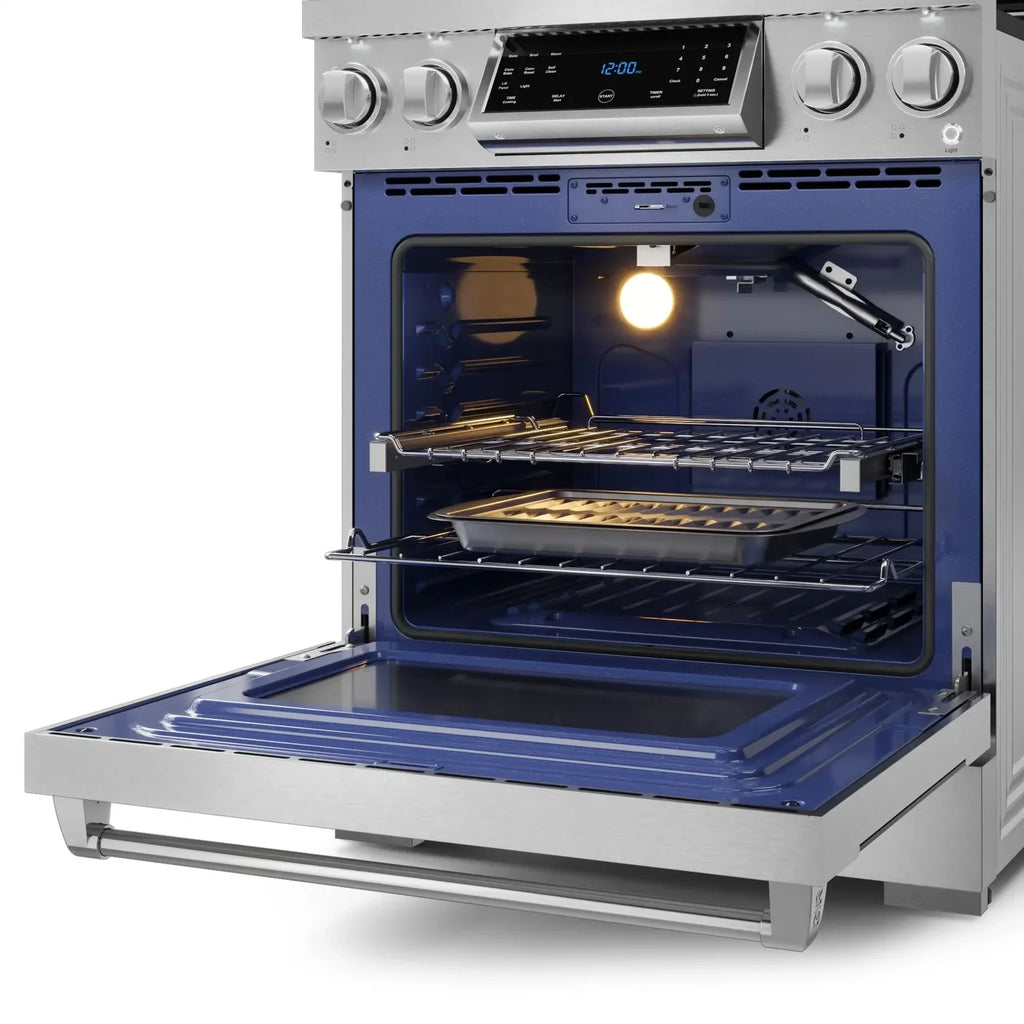

Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven and adjusts to fit different rack support levels.
-
Powerful Broil Burner - The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
-
Powerful Bake Burner - The powerful bake burner provides 18,500 BTUs of consistent heat for even baking.
-
Adjustable 3-Inch Feet with Decorative Leg Cover - The range includes 3-inch adjustable feet with a square decorative cover for the front legs.
-

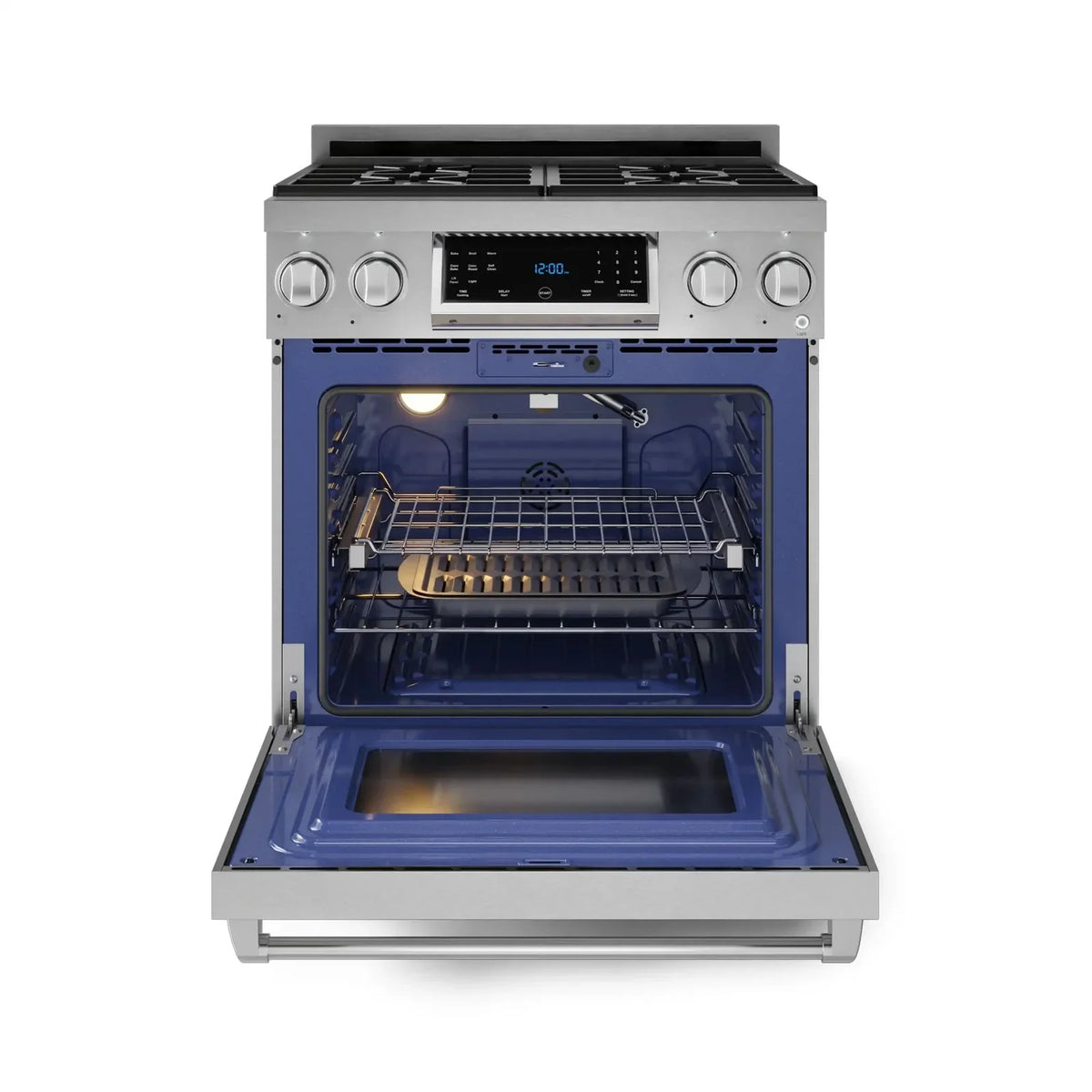

Panoramic Viewing Window - Take a look inside the oven through the
panoramic viewing window for a full, clear view of your dishes as they
cook, allowing you to monitor progress without opening the door.

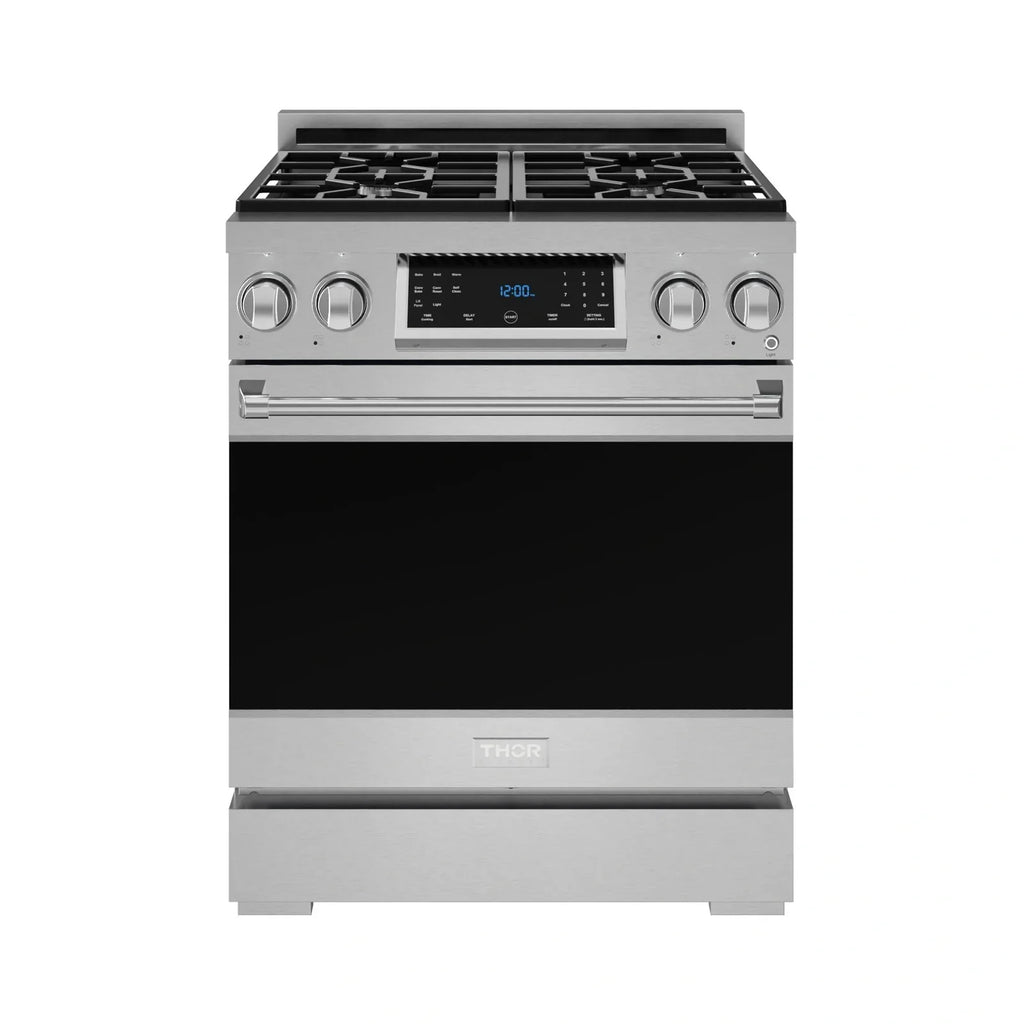

About the RSG30/RSG30LP Gas/Liquid Propane Range:
Designed for chefs who demand precision and power. With high-output burners, even heat distribution, and intuitive controls, this 30 Inch Gas/Liquid Propane range in Stainless Steel elevates your cooking experience. Built for durability and performance, it brings restaurant-grade quality to your home kitchen, making every meal exceptional.
Manual & Guides:
Technical Details
|
| Fuel Type |
Natural Gas (RSG30)
Liquid Propane (RSG30LP)
|
| Construction |
Freestanding |
| Burner Type |
Sealed Burners |
| Type of Grate |
Continuous |
| Max BTU |
15,000 BTU |
| Amperage |
15A |
| Volts (V) |
120V |
| Frequency (Hz) |
60Hz |
| Control Type |
Knob / Touch Screen |
| Panel light |
Yes |
| Plug Type |
US 3-prong |
| Power Cord Length (in.) |
59" |
Oven Performance
|
| Oven Capacity (cu. Ft.) |
4.55 cu. ft. |
| Oven Control Features: |
Light On/ Off, Clock & Kitchen Timer, Time
Cooking, Delay Start, Self clean, Control Lock
Capability, Sabbath Mode
C° or F° Programmable
|
| Oven Cooking Modes |
Bake, Conv Bake, Conv Roast, Broil, Keep
Warm, Fast Preheat
|
| Bake Burner |
18,500 BTU |
| Broil Burner |
10,000 BTU |
| Convection |
Commercial Convection |
| Oven Lights |
Yes |
| Oven Racks (standard) |
1 |
| Oven Racks (telescopic) |
1 |
| Baking Sheet Size |
Fits 23” x 16” Baking sheet |
| Self Clean (Y/N) |
Yes |
| Sabbath Mode (Y/N) |
Yes |
| Air Fry |
No |
Cooktop Performance
|
| Total Number Of Cooktop Burners |
4 |
| (1) Front Left Burner |
15,000 BTU |
| (2) Front Right Burner |
15,000 BTU |
| (3) Rear Left Burner |
12,000 BTU |
| (4) Rear Right Burner |
12,000 BTU |
Oven Dimensions
|
| Oven Internal Width |
23 3/4'' |
| Oven Internal Depth |
19 1/2'' |
| Oven Internal Height |
18” |
Product Dimensions
|
| Product Dimensions (WxDxH) |
29 7/8” x 29 3/4” x 40 7/16” |
| Rubber Spacer Depth (Install On Back Panel) |
3/4″ |
| Product Height (From Bottom To Top Of Back Splash) |
40-7/16” |
| Product Height (From Bottom To Top Of Side Panel) |
36″ |
| Product Depth (From Back Panel To Handle) |
29″ |
| Product Depth (From Back Panel To Bullnose) |
27 1/2″ |
| Product Depth (From Back Panel To Control Panel) |
26 3/8″ |
| Product Depth (From Back Panel To Side Panel Front) |
24″ |
| Adjustable Height |
1" |
| Package Dimensions (WxDxH) |
32” x 32” x 47 1/2” |
Weight
|
| Net weight |
212 lbs |
| Gross weight |
256 lbs |
