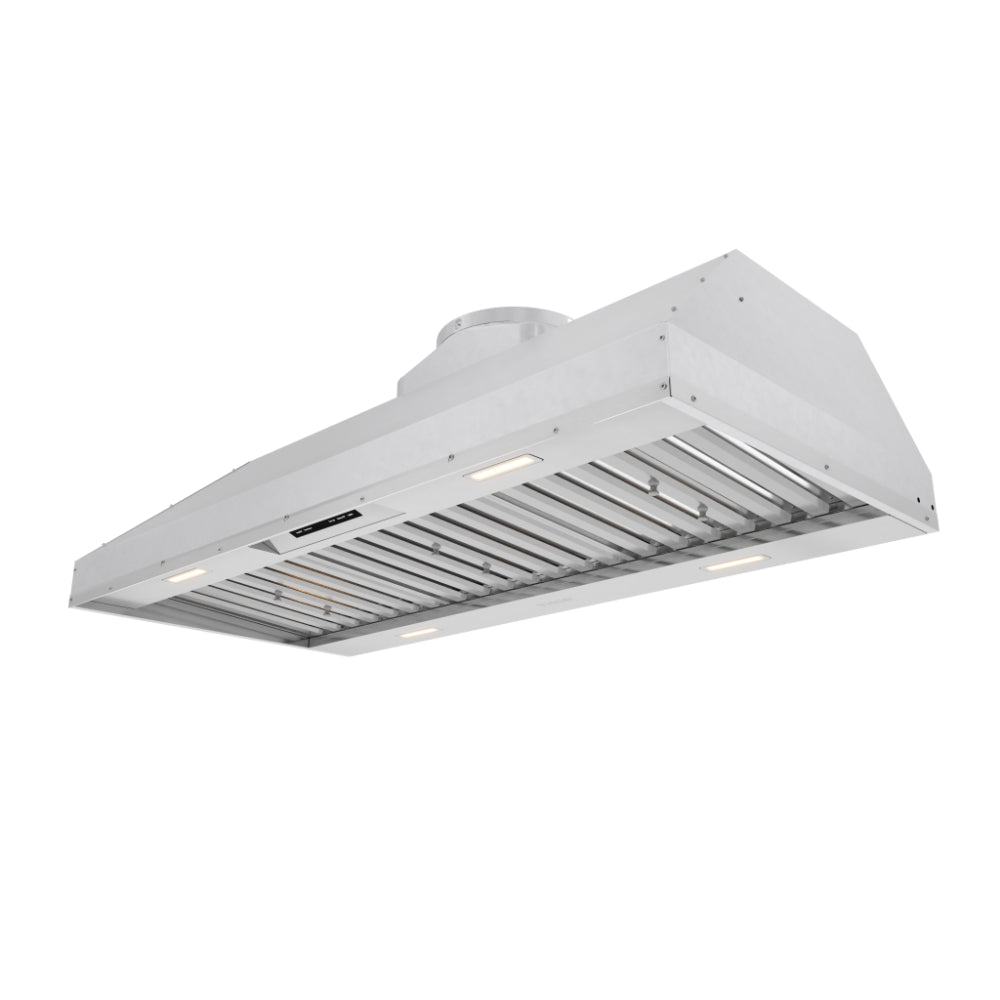

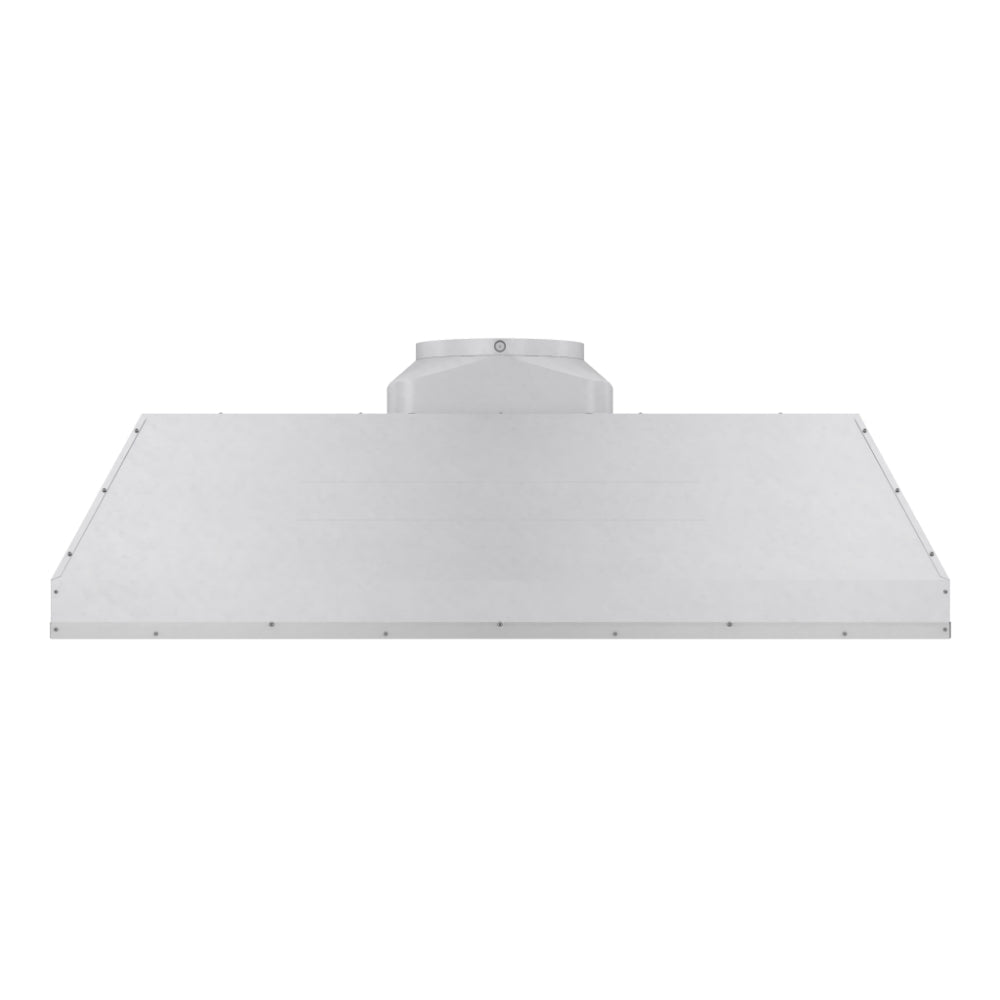

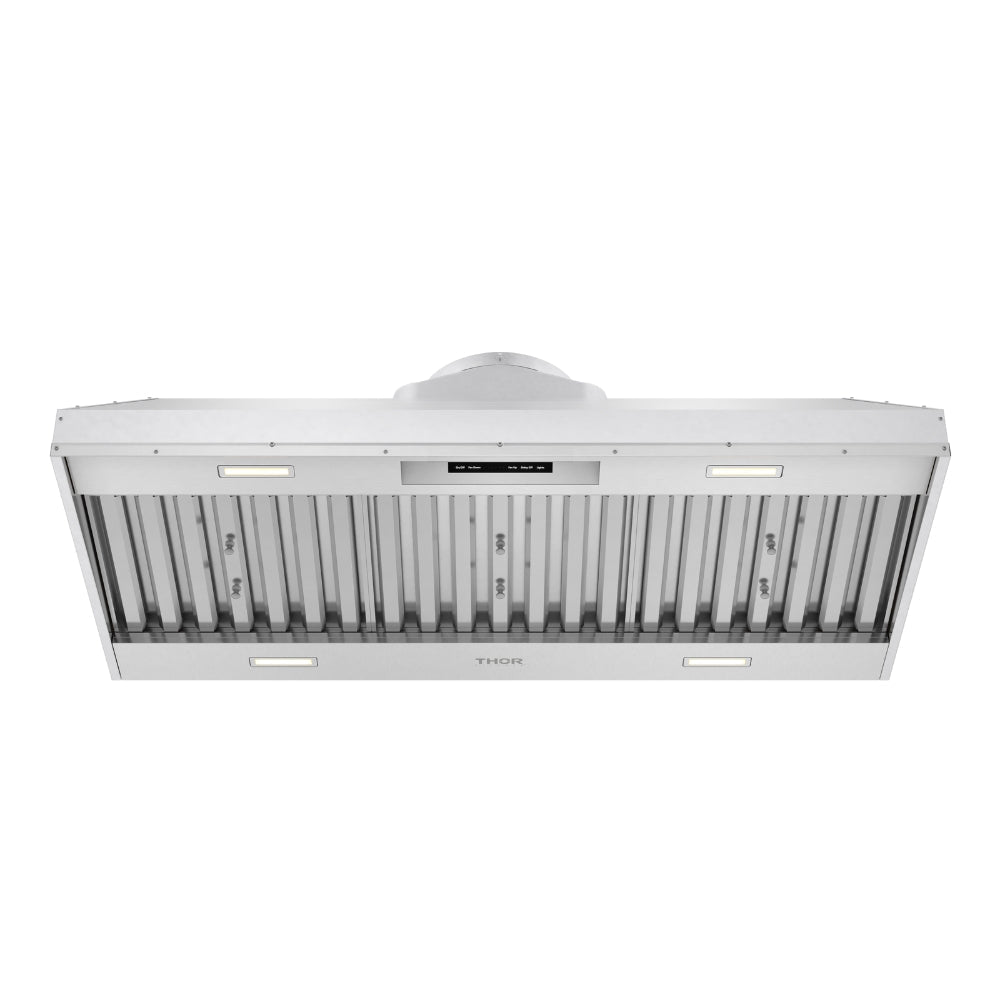

XLH48 Insert Liner Range Hood Features:
-
Liner Hood - Integrates seamlessly into any kitchen cabinet design.
-
1200 CFM - Handles all of the odors, smoke, and steam from multiple
dishes at once.
-
Gesture Controls - Turn on/off and adjust speed with a wave of your hand
-
Delay-Off - Set it and forget it. Delays power shut off for up to 12 minutes.
-

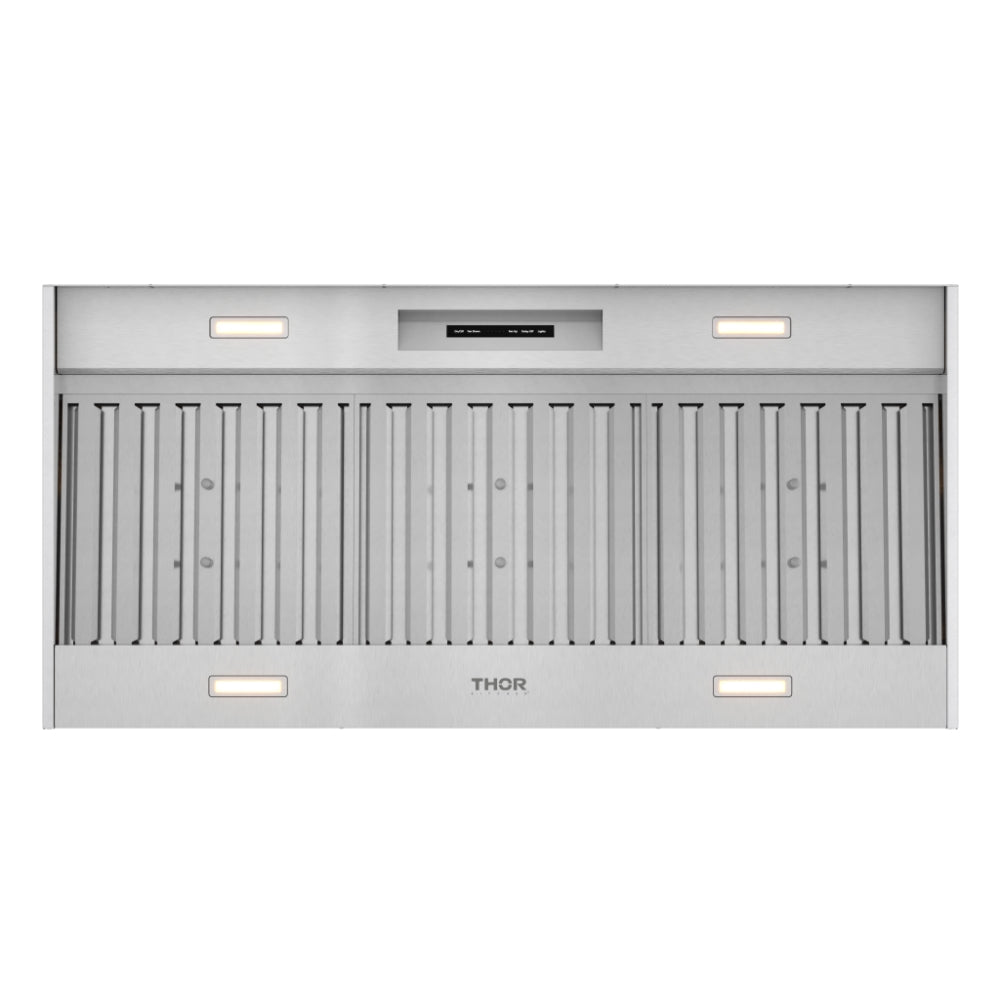

Stainless Steel Baffle Filters - Easy to remove and place into the
dishwasher for a good cleaning.
-
LED Lights - Easily illuminate your cooking space with bright built-in
LED lights
-
Clean Filter Reminder - Never forget to clean your filters again cleaning.
-
6 Speeds - This powerful hood handles all of the odors, smoke,
and steam from multiple dishes at once.
-

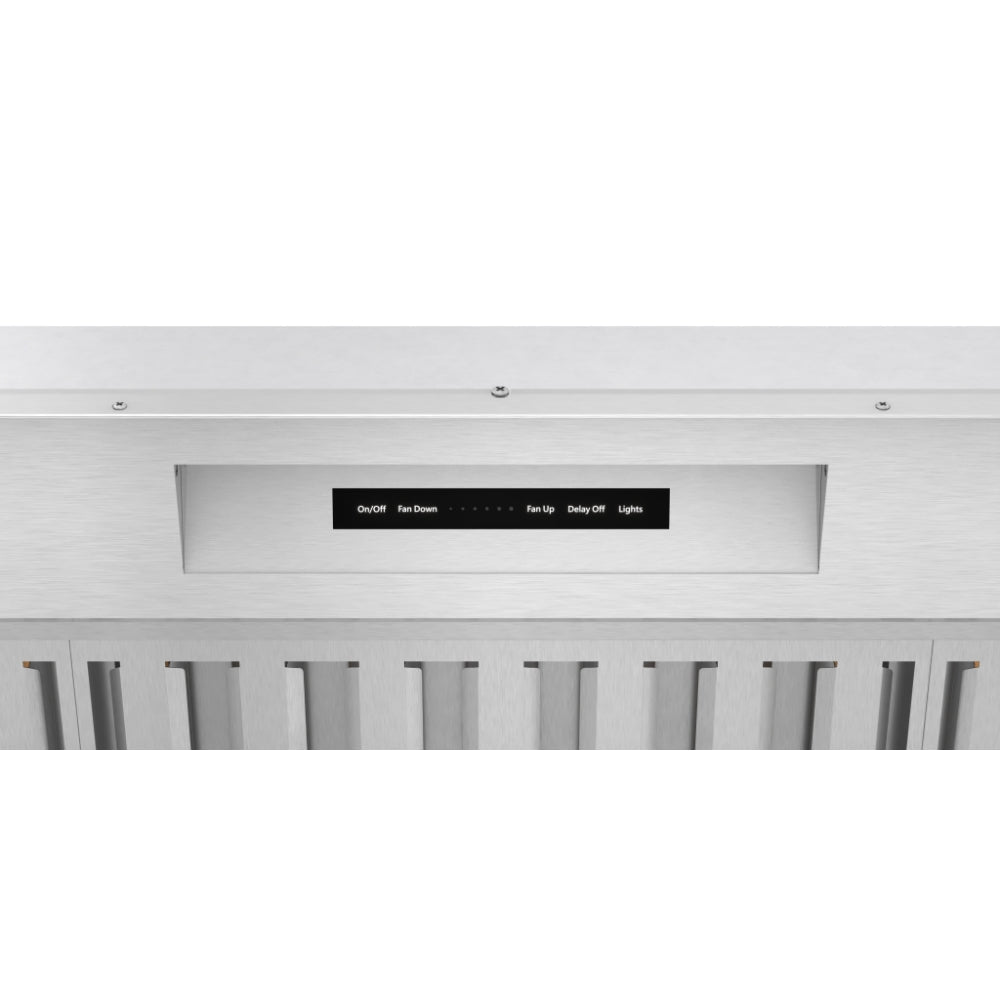

Touch Control - Control the fan functions at a touch of the LED display.
-
Heat Sensor - Equipped with a heat sensor that automatically activates
the fan when the temperature reaches 131°F (55°C) and deactivated
when it cools down to 104°F (40°C) ensuring energy efficiency and
effective heat management.
About the XLH48 Insert Liner Range Hood:
THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Introducing the 48″ Liner Hood, designed to effortlessly handle all your kitchen ventilation needs with its powerful 1200 CFM motor. Perfectly customizable to meet any custom cabinet design, this liner hood integrates seamlessly into your kitchen decor. Wave goodbye to smoke, odors, and steam with intuitive Gesture Controls that let you adjust the speed with just a wave of your hand. The intelligent Heat Sensor activates the hood at 131°F and shuts it off at 104°F, while the Delay-Off feature lets you set a power-off delay for up to 12 minutes. Keep your kitchen grease-free with deep-groove Baffle Filters, which are also dishwasher-safe for easy cleaning. Bright LED Lights illuminate your cooking space, and the Clean Filter Reminder ensures your filters are always maintained. With 6 adjustable fan speeds and a responsive Touch Control panel, you have complete control over your kitchen environment.
Spec and Manual:
Technical Details:
| Mount Type |
Insert |
| Operating Mode (Ducted or Ductless) |
Ducted |
| Color/Finish |
Stainless Steel |
| Number of Speed Settings |
6 |
| Number of Lights |
4 |
| Bulb Type |
LED (Square) |
| Control |
Touch |
| Filter Type |
Baffle Filter x 2 |
| Volts |
120V |
| Frequency |
60Hz |
| Amperage |
7A |
Blower Rating:
| Min |
350 CFM (48 dbA) |
| Max |
1200 CFM (70 dbA) |
Product Dimensions & Weight:
| Product Dimensions (WxDxH) |
46-3/8” x 22-1/2” x 12” |
| Carton Dimensions (WxDxH) |
50 25/64” x 16 59/64” x 28 47/64” |
| Duct Diameter |
10" |
| Duct Shape |
Round |
| Net Weight |
63.6 lbs |
| Gross Weight |
79.3 lbs |
