LRG4807U Gas Range Features:
-

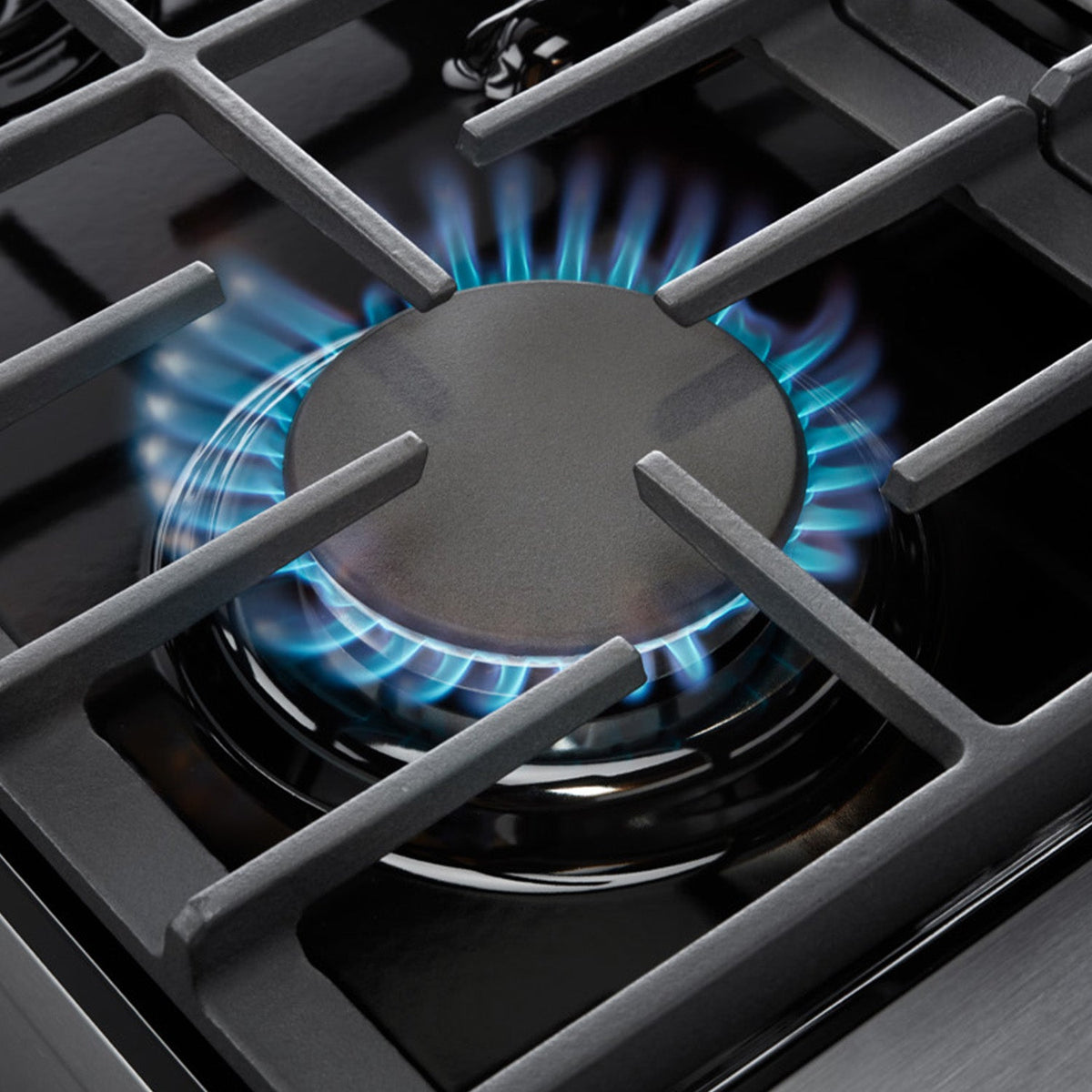

High-Powered BTU Burners - The high-powered 18,000 BTU burner on the gas range provides fast, intense heat for creating large family meals and restaurant-quality dishes
-

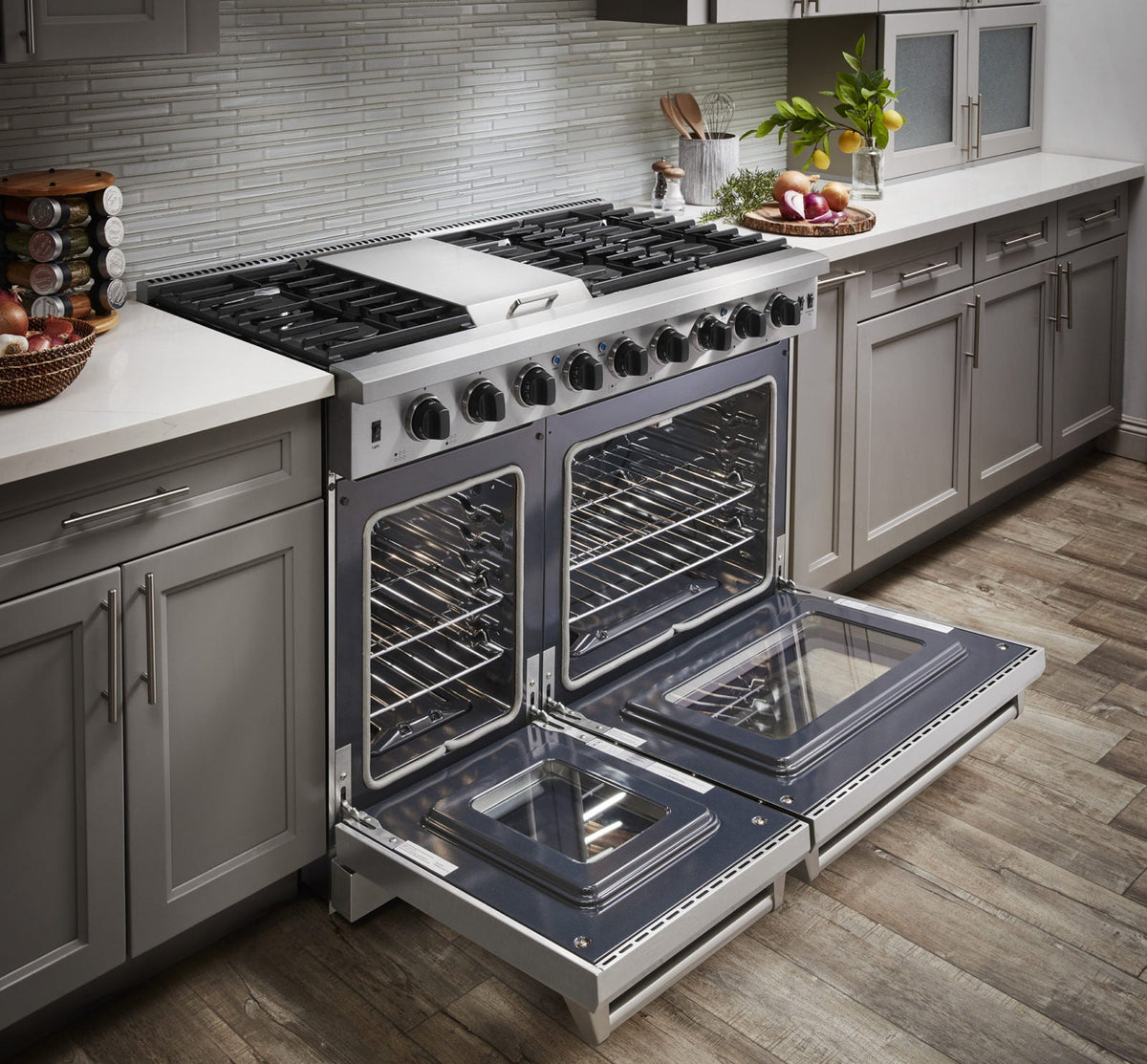

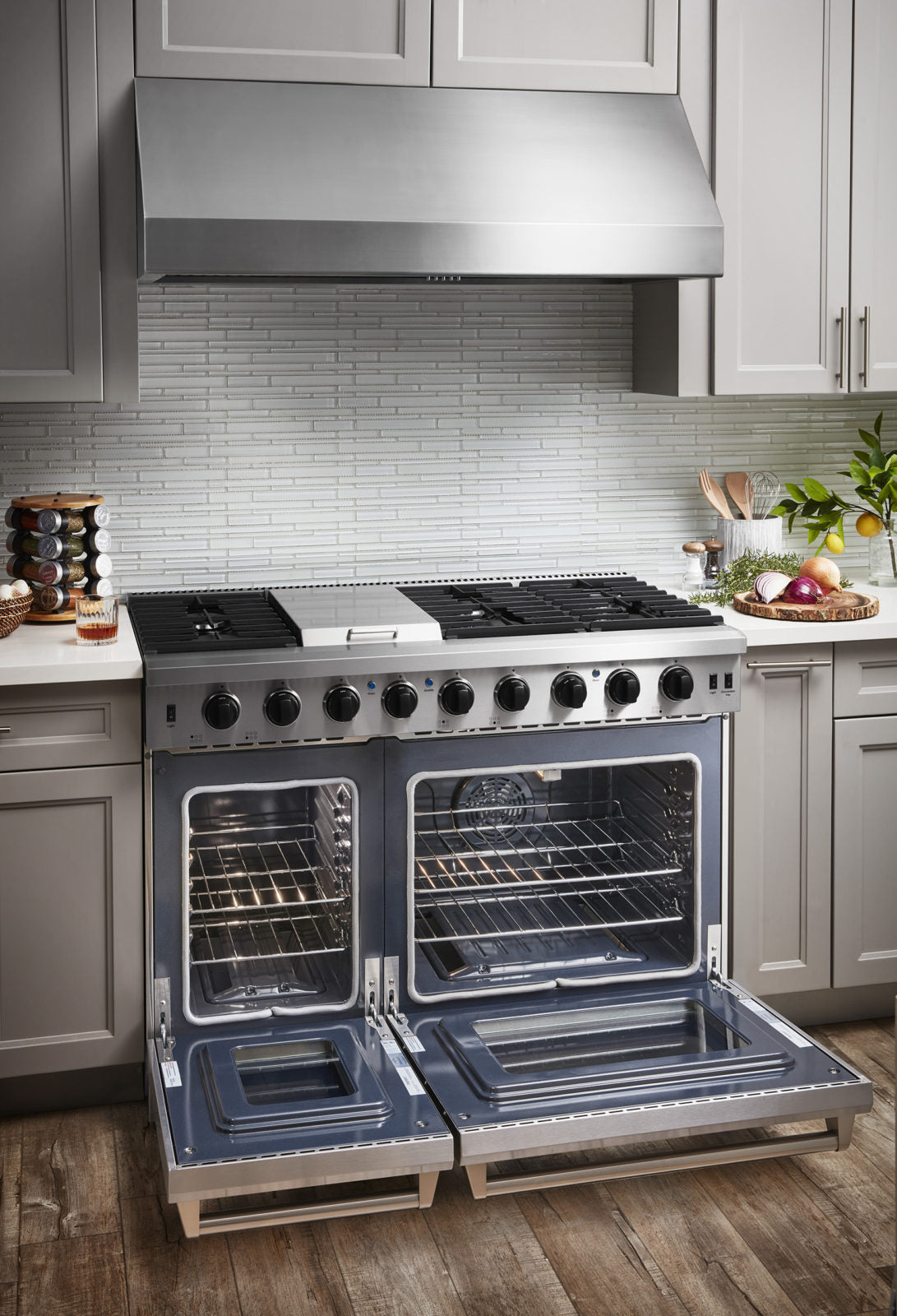

Oven Capacity - Dual ovens at 4.6 cu. ft. and 2.2 cu. ft. capacity allow you to cook multiple dishes at a time
-

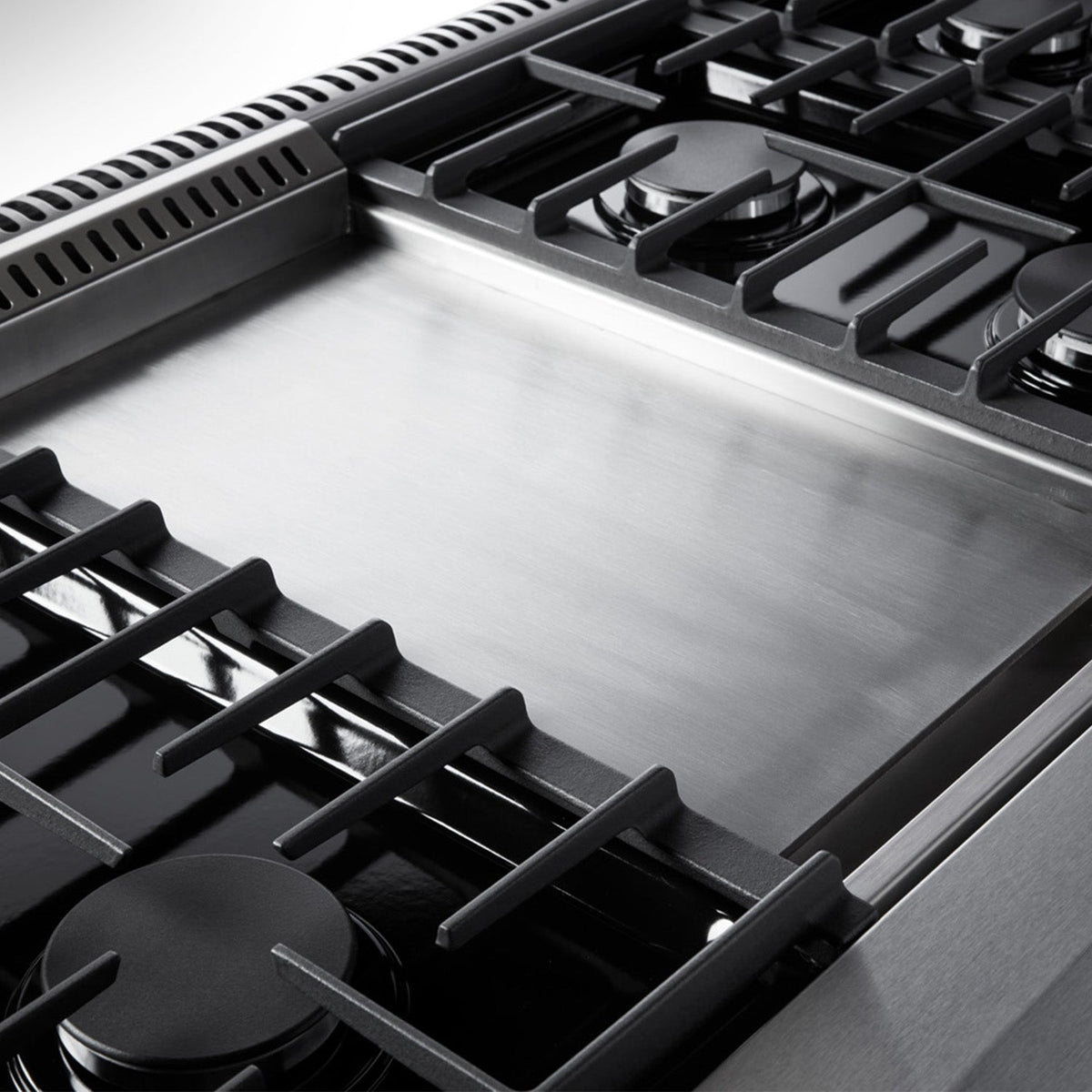

Griddle Feature - The 15,000 BTU griddle offers additional cooking space and flexibility
-
Storage Space - Storage drawer provides additional storage space for cooking trays and other kitchen utensils
-
Convection Fan - Commercial convection fan provides controlled heat distribution for fast and efficient cooking
-
Continuous Cast-Iron Grates - Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
-
Even Heat Broiler - Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
-

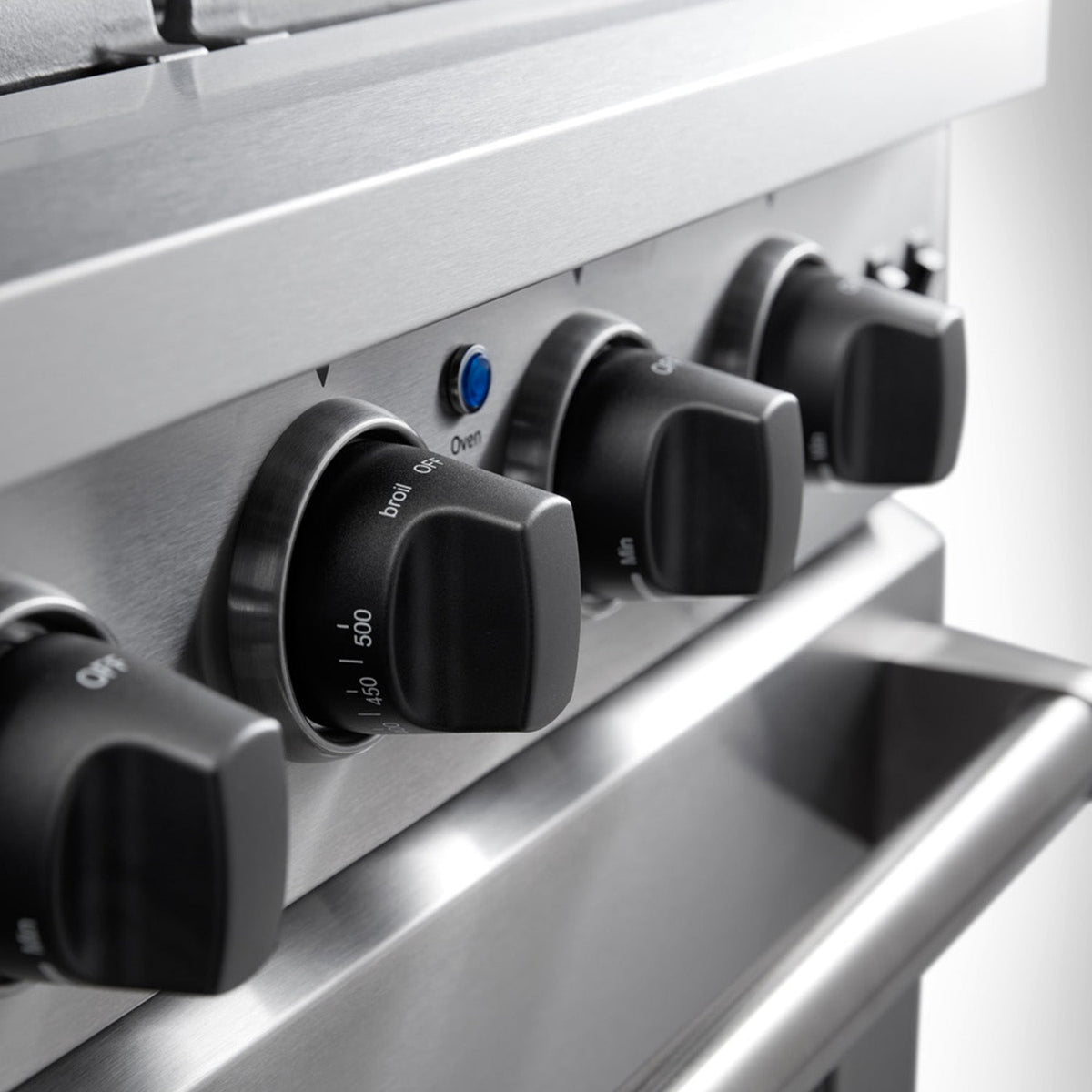

Pro-style Knobs - Black ABS burner control knobs add style to the bold gas range design
-
Porcelain Spill Tray - Single-piece black porcelain spill tray catches the mess and makes cleanup easy
-
Porcelain Interior - The gray porcelain oven interior adds a stylish touch to the gas range and is easy to clean

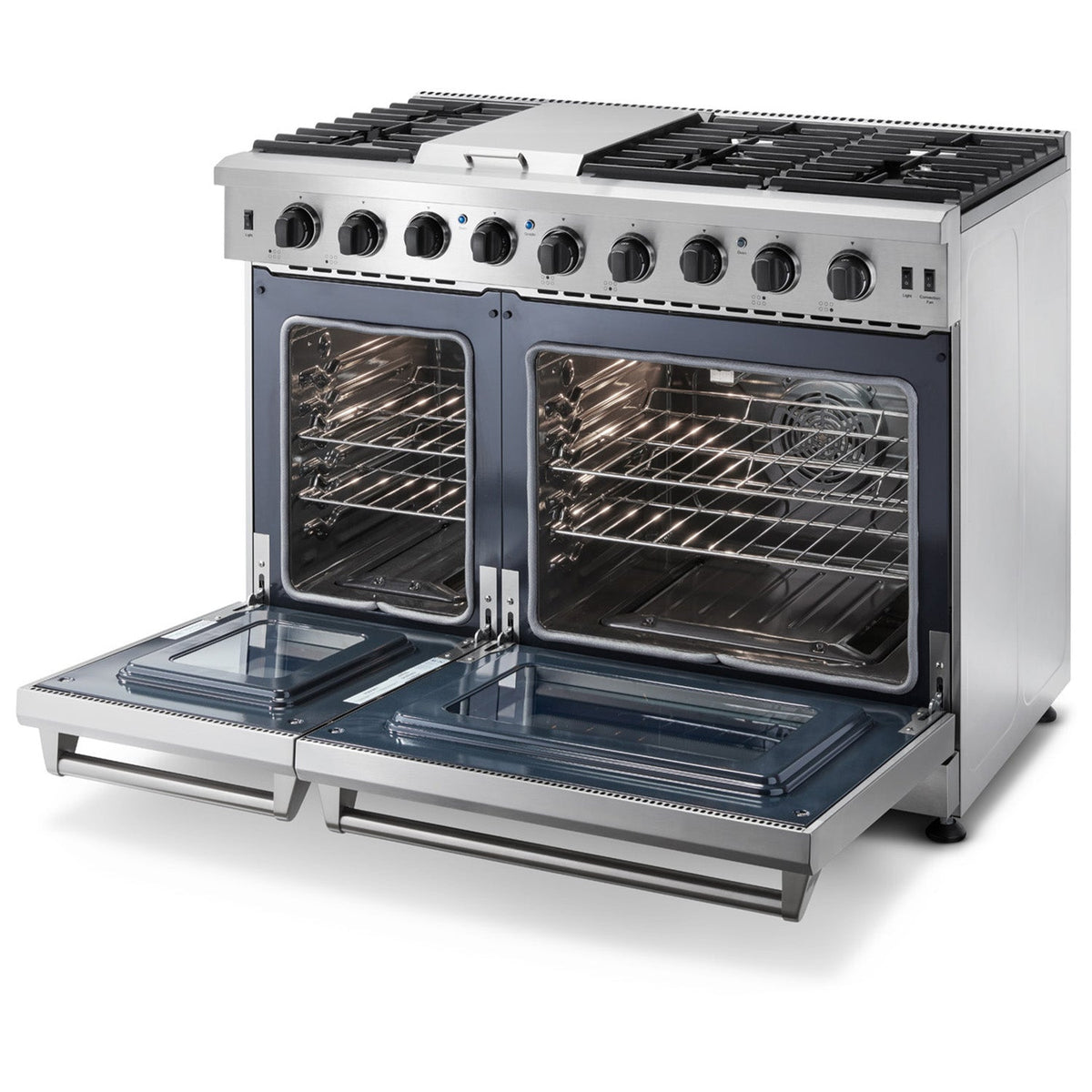

About the LRG4807U Gas Range:

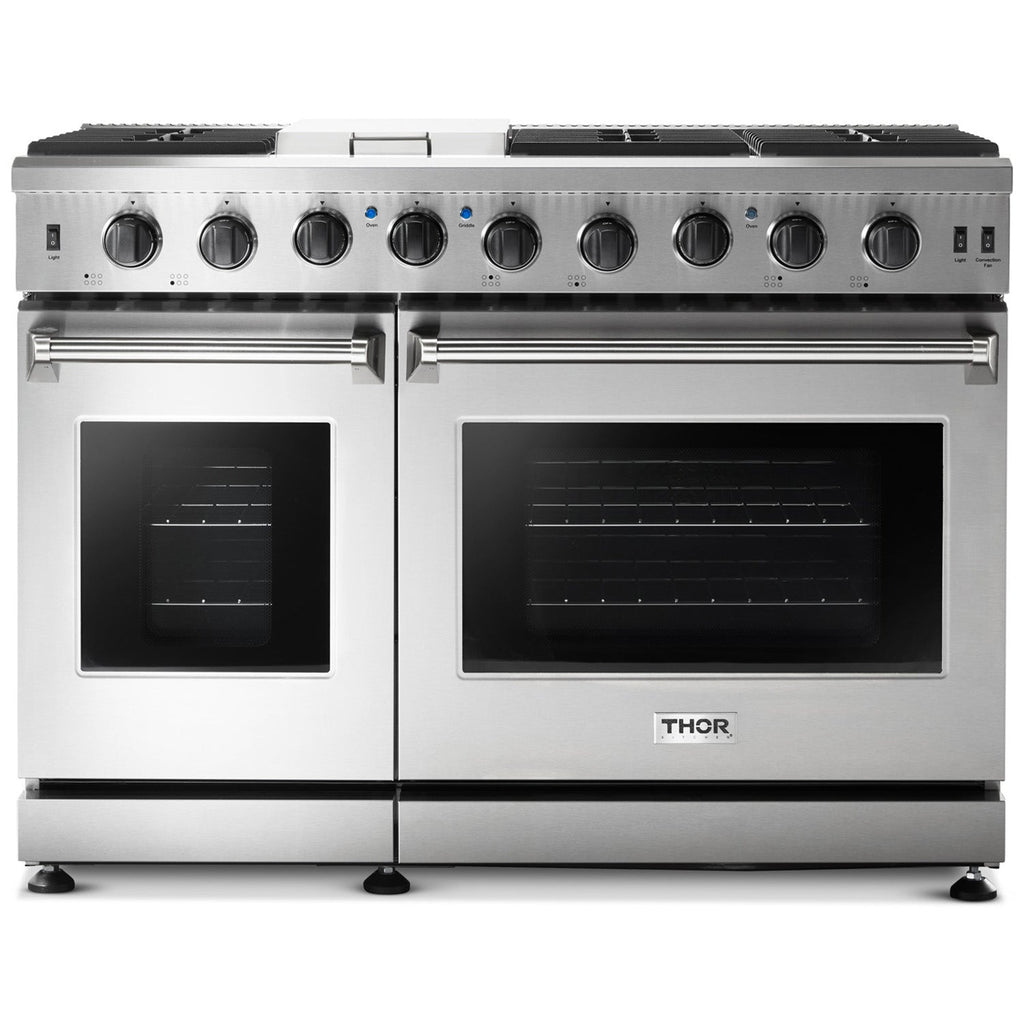

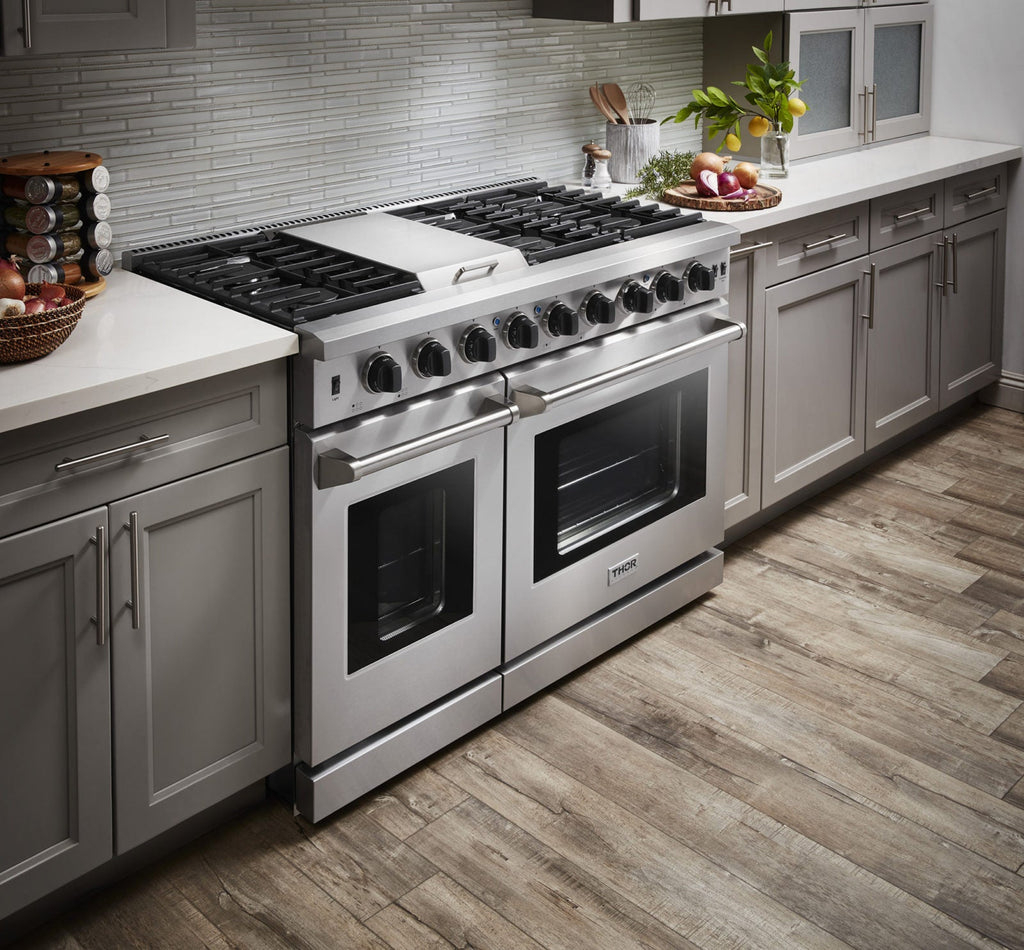

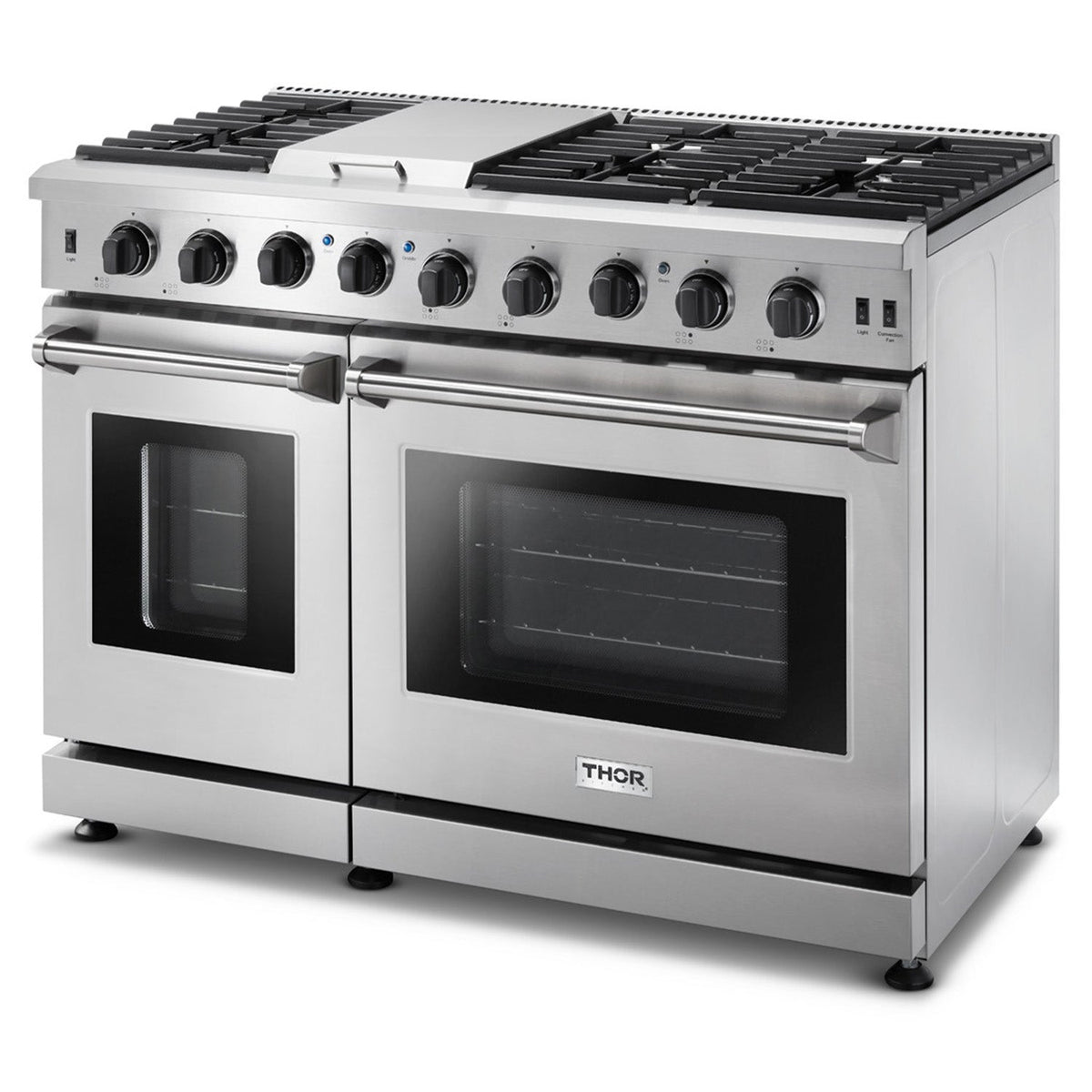

Thor Kitchen 48 Inch Gas Range is a stainless steel machine that is designed with professional features and functionality. With powerful burners, continuous grates and a commercial convection fan, this gas range takes everything from prime rib to snickerdoodles to the next level.
Technical Details:
| Fuel Type |
Natural Gas / LP Convertible |
| Electrical Requirements |
120V |
| Circuit Breaker (A) |
15 or 20A |
| Frequency (Hz) |
60 Hz |
Burner Performance:
| Front Left (Single) |
12,000 BTU |
| Front Middle (Single) |
18,000 BTU |
| Front Right (Single) |
12,000 BTU |
| Rear Left (Single) |
12,000 BTU |
| Rear Middle (Single) |
12,000 BTU |
| Rear Right (Single) |
12,000 BTU |
| Griddle Burner |
15,000 BTU |
| Tube Broil burner |
10,000 BTU |
| U-shape burner (30” Oven) |
22,000 BTU |
| Tube burner (18” Oven) |
14,000BTU |
Gas Range Dimensions:
| Width |
47 7/8” |
| Height (from bottom to top of back splash) |
36 1/2” - 37 1/2” |
| Height (from bottom to top of side panel) |
34 7/8” – 35 7/8” |
| Depth (from back panel to bullnose) |
27 1/2” |
| Depth (from back panel to control board) |
26 3/8” |
| Depth (from back panel to side panel front) |
24” |
| Depth of control panel (minimum) |
2 5/16” |
| Depth of control panel (bullnose) |
3 1/2” |
| Adjustable Legs |
Not to Exceed 1” |
Required Cutout Size:
- 48 1/8” x 25” x 34 7/8” (+1”)
