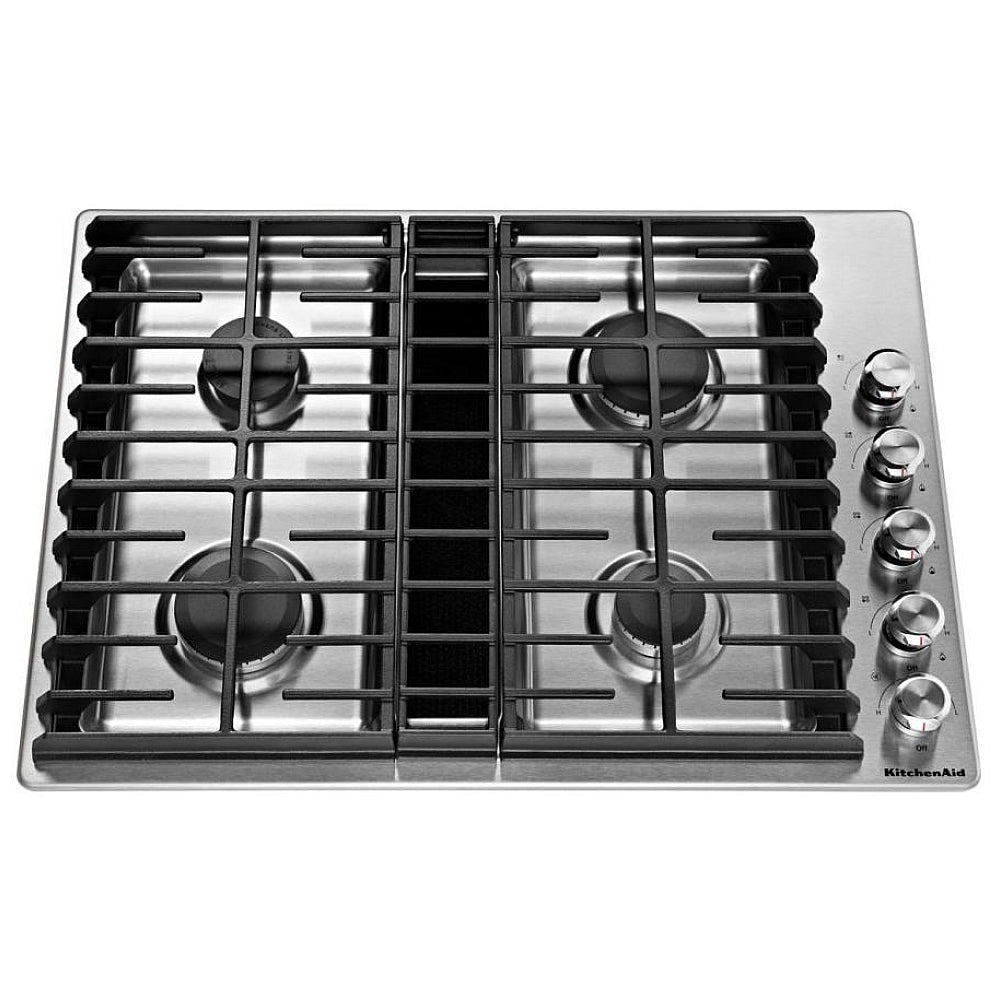

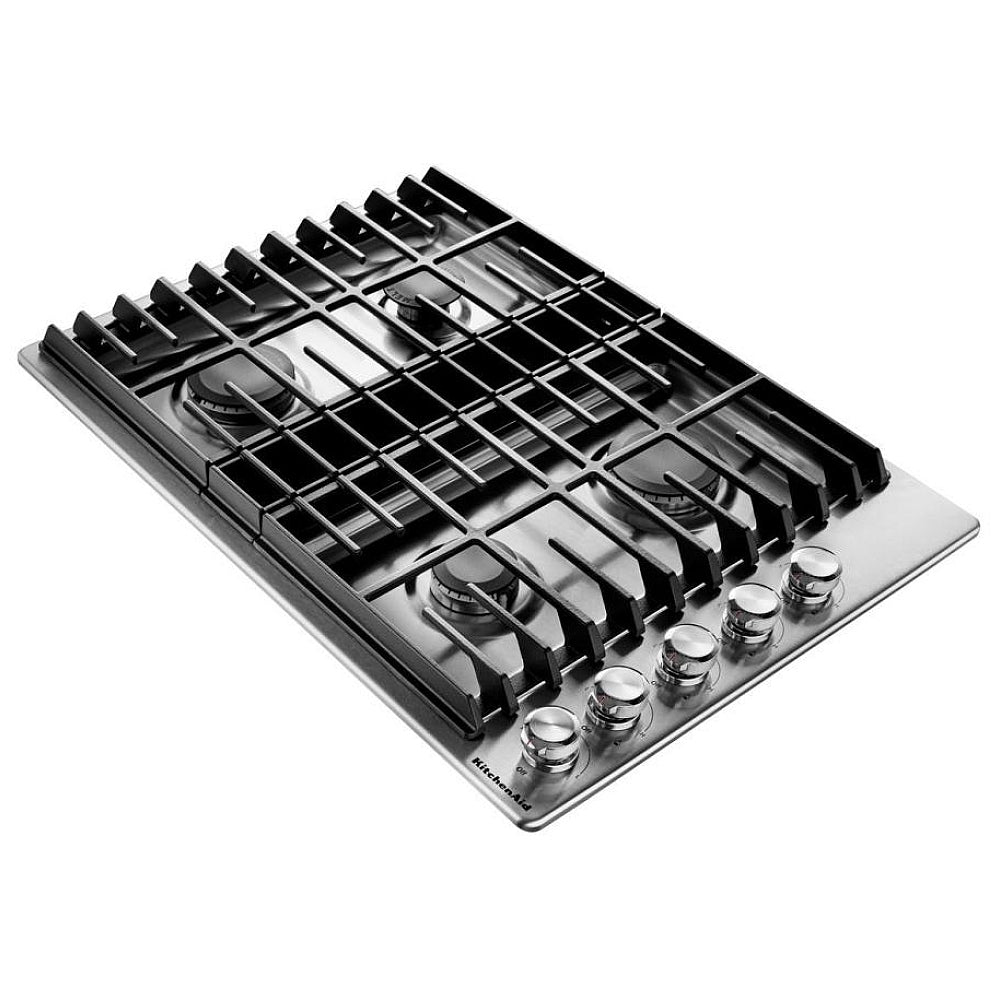

KCGD500GSS 30 Inch Gas Cooktop Features:
This 30 gas cooktop includes Downdraft, an integrated ventilation system that doesn't require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
-
Downdraft Ventilation - Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
-

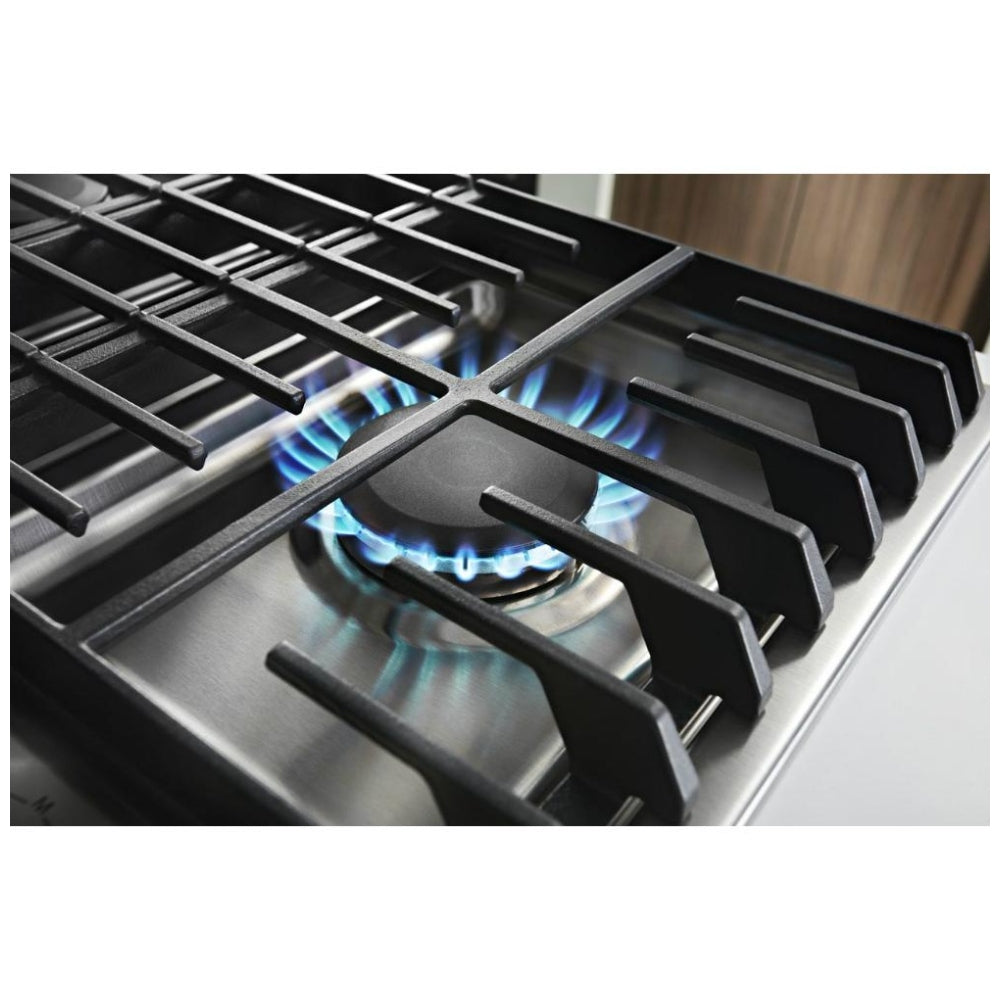

17K BTU Professional Burner - Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
-
5K BTU Even-Heat™ Simmer Burner - A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
-
300 CFM Exhaust Rating - Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
-
3-Speed Fan Control - Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
-
15K BTU Professional Burner - Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
-
Convertible to Duct-Free Ventilation - Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitation
-

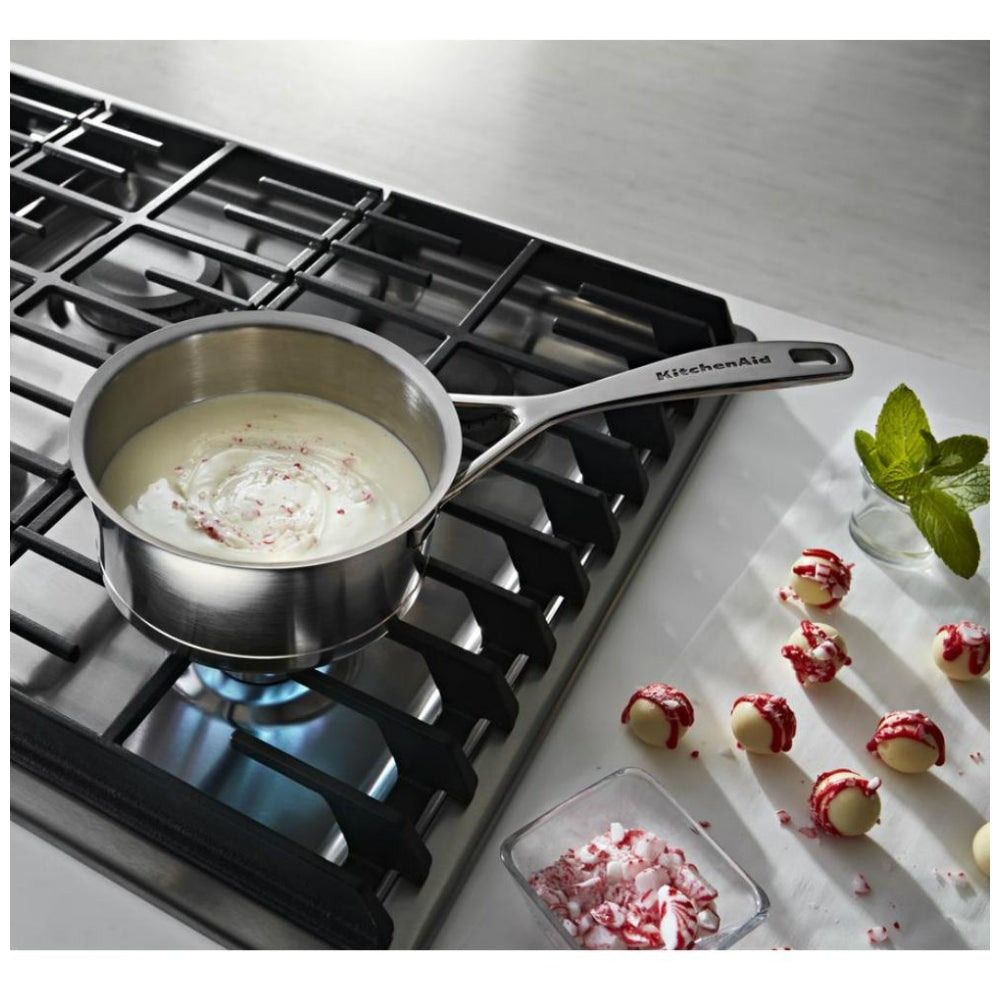

Melt Cap - Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
-
Electronic Ignition and Automatic Re-Ignition - Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
-
Stainless Steel Knobs - Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
-
Full-Width Cast-Iron Grates - Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
-
LP Conversion Kit - Allows you to convert the cooktop so it can be used with LP gas.
Specifications:
| Control Location |
Right Side |
| Control Type |
Knobs |
| Infinite Heat Controls |
Yes |
| Cooktop Surface Color |
Color Coordinated |
| Cooktop Surface Material |
Stainless Steel |
| Digital Display |
No |
| Heating Element On Indicator Light |
No |
| Hot Surface Indicator Light |
No |
| Ignition Type |
Flame-Sensing™ Re-ignition |
| Number of Open Bays |
N/A |
| Automatic Pan Detection |
No |
| Fuel Type |
Gas |
| Installs Over Built-in Oven |
No |
| Lp Convertible |
Yes |
| Number of Vent Speeds |
3 |
| Power Outage Compatible |
Yes |
| Product Height |
18.4375 |
| Cutout Depth |
19.938 |
| Carton Height |
23.78 |
| Gross Weight |
78 |
| Carton Depth |
26.38 |
| Carton Width |
35.12 |
| Cutout Width |
28.625 |
| Product Depth |
21.5 |
| Net Weight |
66 |
| Product Width |
30.0 |
| Power Cord Included |
Yes |
| Cooktop Element Style |
Sealed Burner |
| Cooktop Type |
Downdraft |
| Left Front Element-burner Power |
17,000 BTU |
| Left Front Element-burner Type |
Burner |
| Left Rear Element-burner Power |
5,000 BTU |
| Left Rear Element-burner Type |
Even-Heat™ |
| Number of Cooking Element-burners |
4 |
| Power Boost |
No |
| Right Front Element-burner Power |
10,000 BTU |
| Right Front Element-burner Type |
Burner |
| Right Rear Element-burner Power |
15,000 BTU |
| Right Rear Element-burner Type |
Burner |
| Knob Color |
Stainless Steel |
| Knob Type |
Metal |
| Cooktop Features |
Downdraft Ventilation; Even-Heat Melt Burner |
| Grate Details |
Cast Iron Grates; Continuous; Matte Finish |
| Number of Grates |
3 |
| Cfm Motor Class |
300 |
| Downdraft Vent |
Yes |
