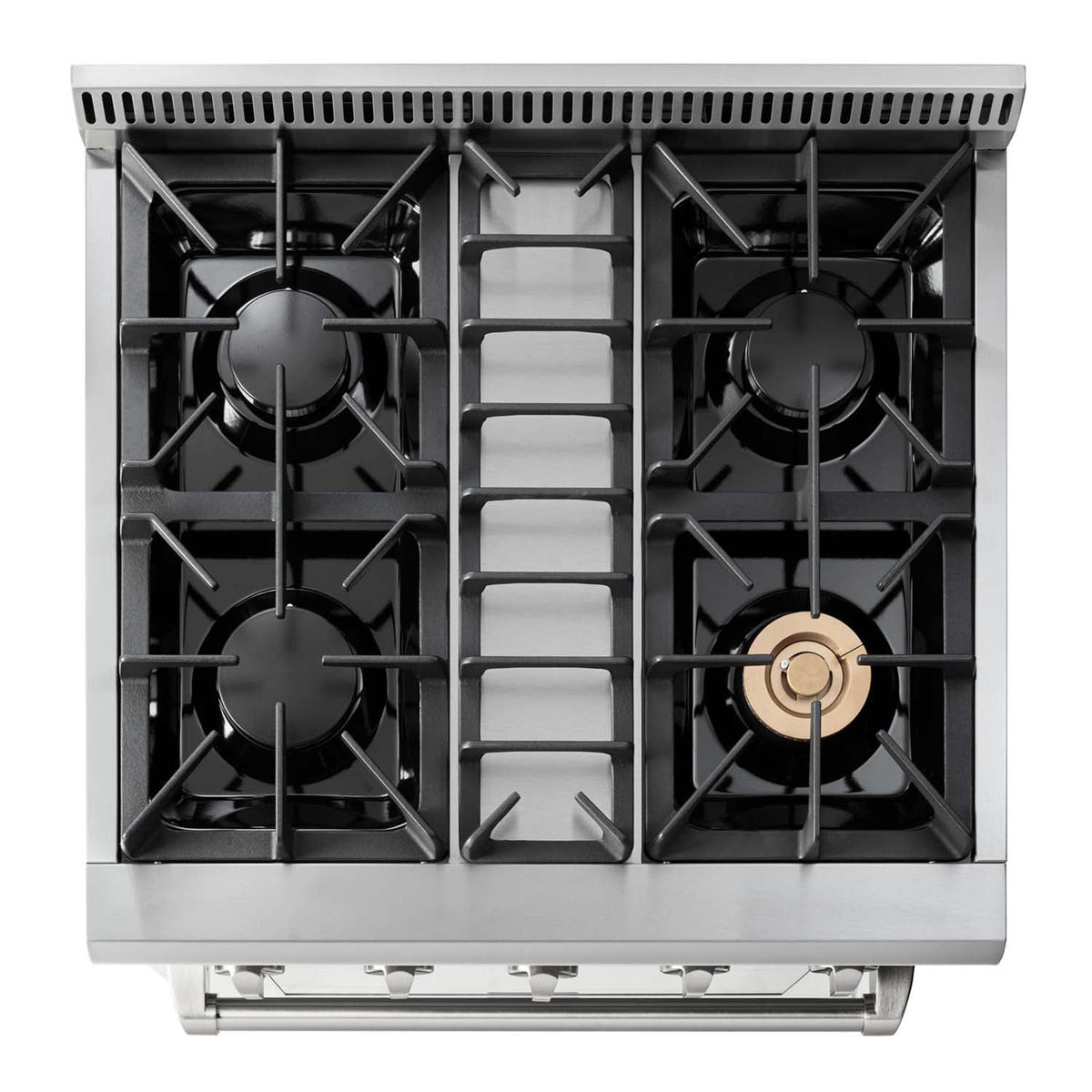

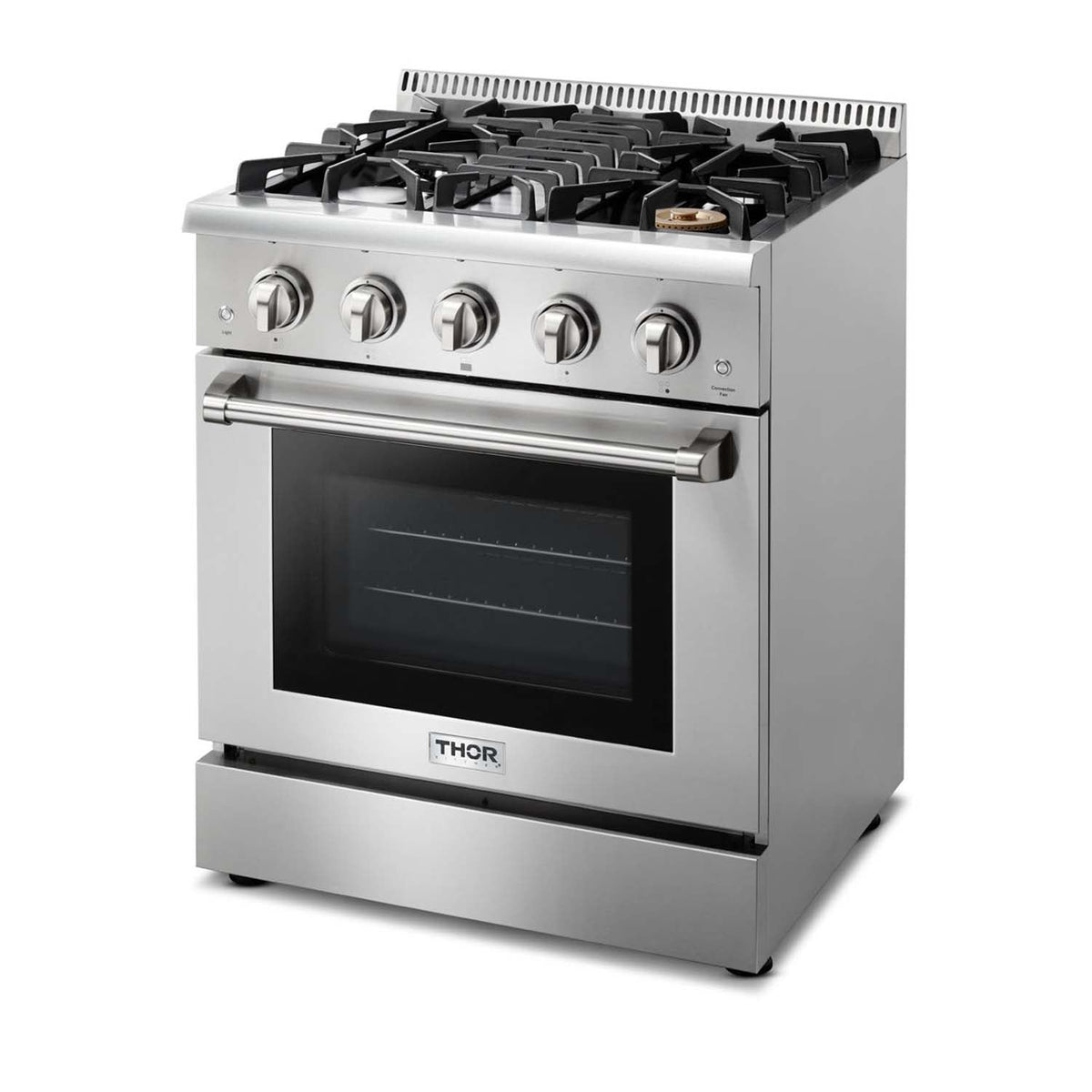

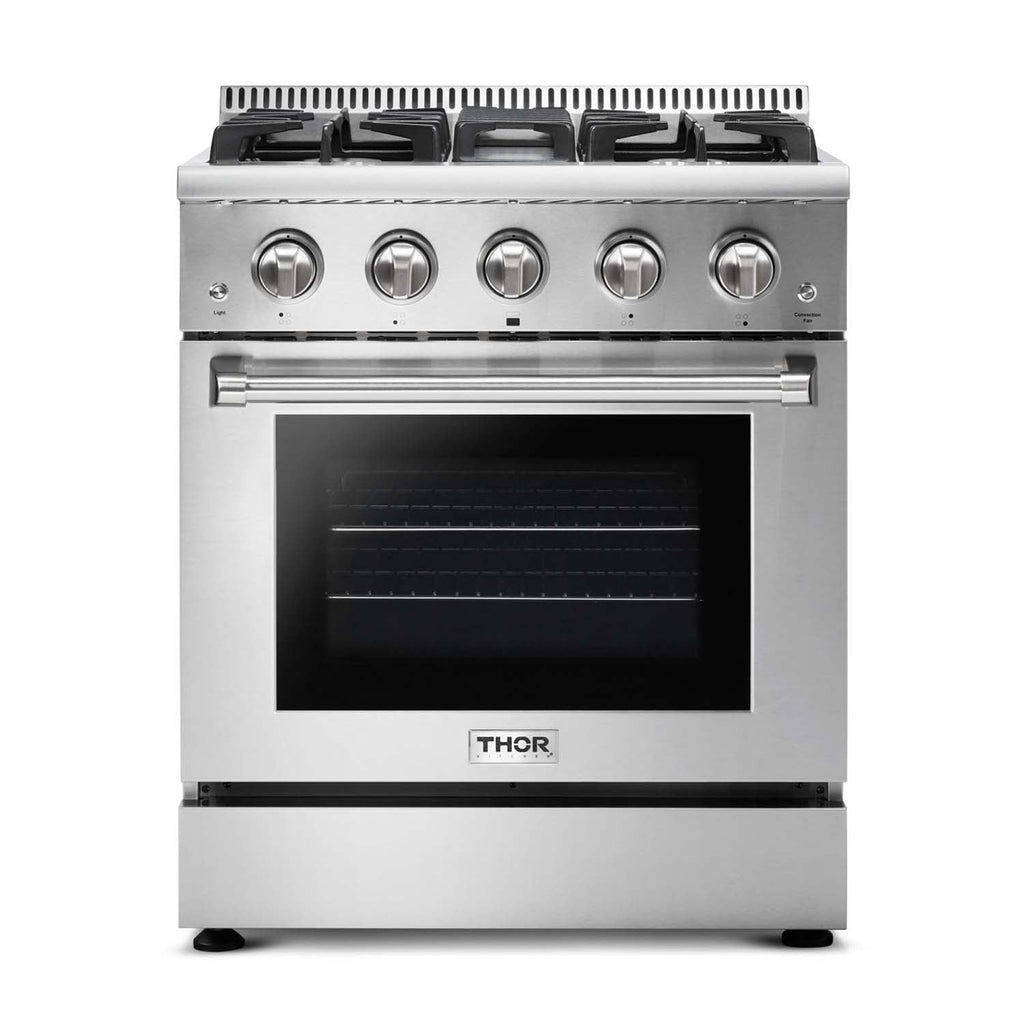

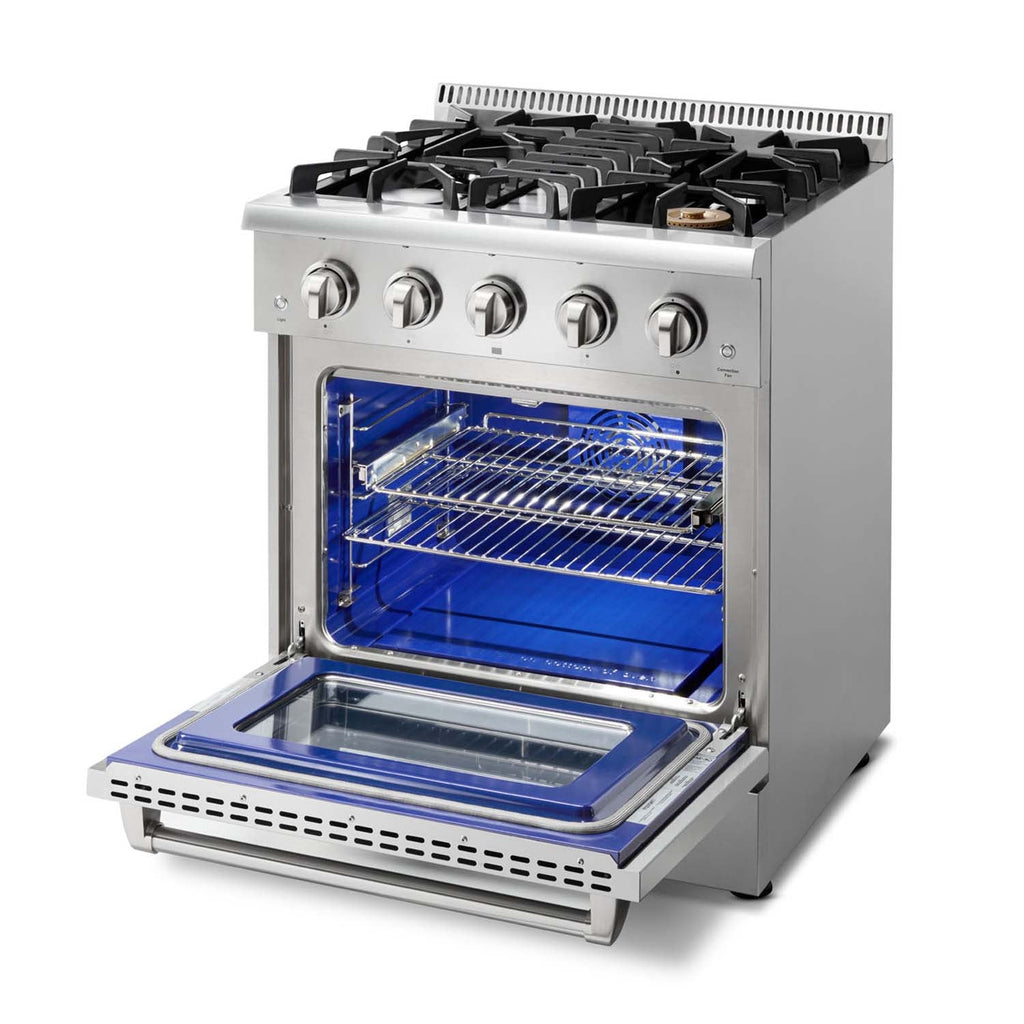

Thor Kitchen 30 Inch Gas Range - HRG3080U

HRG3080U Gas Range Features:

• High-Powered BTU Burners - From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this gas range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate
• LuxGlide™ Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels
• Gas Flame Broiler - Reflective gas flame broiler radiates heat evenly to sear your food and seal in the juices
• Commercial Convection Fan - The convection fan of this gas range provides controlled heat distribution for fast and efficient cooking
• LED Control Panel Lights - When in operation, the LED control panel lights of this gas range illuminate a striking blue for an added pop of color
• Large Oven Capacity - 4.2 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking
• Continuous Cast-Iron Cooking Grates - Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
• Brilliant Blue Porcelain Interior - The brilliant blue porcelain interior of this gas range adds a bold, stylish touch to your professional gas range
• Heavy Duty Control Knobs - Heavy duty, die-cast metal burner control knobs add style and durability
• Black Porcelain Spill Tray - Black porcelain spill tray on cooktop catches the mess and makes this gas range easy-to-clean
• Automatic Reignition Feature - Automatic reignition feature relights an extinguished flame for safer cooking

About the HRG3080U Gas Range:

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price.  The Thor Kitchen 30 Inch Gas Range is a stainless-steel machine that is designed with professional features and functionality. This powerful gas range has 4 burners including an 18,000 BTU single burner, a 15,000 BTU dual burner and two 12,000 BTU single burners giving you the flexible cooktop you’ve been dreaming about.

Download User Guide

Download Spec Sheet

Technical Details:

Fuel Type	Natural Gas / LP Convertible
Electrical Requirements	120V
Circuit Breaker (A)	15 or 20 A
Frequency (Hz)	60 Hz

Burner Performance:

Front Left (Single)	18,000 BTU
Front Right (Dual Burner with simmer function)	15,000 BTU (650 BTU for Simmer)
Rear Left (Single)	12,000 BTU
Rear Right (Single)	12,000 BTU
Tube Broil burner	13,000 BTU
U-shape Bake burner	22,000 BTU

Gas Range Dimensions:

Product Width	30”
Product height (from bottom to top of back splash)	38 3/8”-39 3/8”
Product height (from bottom to top of side panel)	35 9/16” - 36 9/16”
Product depth (from back panel to bullnose)	27 15/16”
Product depth (from back panel to control board)	26 9/16”
Product depth (from back panel to side panel front)	24 13/16”
Depth of control panel (minimum)	1 11/16”
Depth of control panel (bullnose)	3 1/8”
Cast iron cooking grate (W x L)	10 3/4” x 23”
Adjustable Legs	Not to Exceed 1”

Oven Dimensions:

Oven Cavity Dimension	24”W x 15 1/4”H x 18”D
Oven Rack Dimension	22 3/4” x 15 1/2”
Distance Between Oven Rack	2 1/8”

Required Cutout Size:

• 30 1/8” x 24 13/16” x 35 9/16” (+1”)
